Non-fried Instant Noodles Plant

Non Fried Instant Noodles Processing Line

  • Model:BFP-6H-A
  • Capacity:4 tons every 8 hour
  • Dimension:55*5*5 m
  • Power:55 kw
  • Nonfried Instant noodls processing Line has fried and non fried processing plant two types, also has square and round piece, two noodle shapes, and instant noodles can be packed into bags, cup, bowl. For the production capacity, has Produced 30000 package to 250000 bales / 8 hours, and the weight of each instant noodles ranged from 30 grams to 100 grams, roller width from 200 mm to 1000 mm is optional.

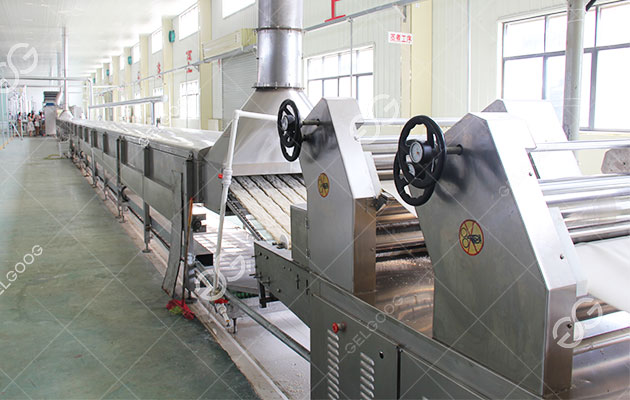

    instant noodles processing line
    Equipment additional configuration: soup delivery machine, packing machine, box sealing machine, metal detection apparatus, weight sorting machine, automatic sealing machine. After the upgrade, our company will provide training technology, and equipment is one year repair, life-long maintenance.

    For problem during using we can communicate through the phone, Telephone guidance can not be solved, our company will arrange door-to-door repair.

    Our Service
    We sincerely supply comprehensive and best service to all of our customers. We offer services for the following.
    1. supply solutions for the buyers' special demands
    2. new design plant layout according to the actual situation
    3. onsite installation, commissioning and operational training
    4. provide technical support both at setup and maintain
    5. long - term supply of spare parts
    6. warranty service

    About Us
    JINGCHENG Machinery Company set up in 1988, is a professional manufacturer and exporter of different noodle making machines.Our company offers complete sets of fried instant noodle production line and non-fried instant noodle production line, dried noodle production line,fresh noodle production line, corn noodle production line and rice noodle production line. As a result of our high quality products and outstanding customer service, we have gained a global sales network . The products of our company are exported to many countries in Asia, Western Europe and South Africa.

    Contact us now! To get more information about noodle production!
  • Width:350mm           Capacity:60000 Pcs/8h(60g/Pcs)     4T/8h
    No. Machine Name Model Quantity Note
    1 Brine quantifier and mixer YSH10 1 SET Power:0.75KW,Volume:100L/SET
    The parts connect with water are made of stainless steel
    2 Double speed dough mixer HMJ200 1 SET Power 9/11 kw,200kg/pot/manual door opening
    The parts connect with flour are made of stainless steel
    3 Disc cooker machine PS200 1 SET Power:4kw,size of pan:Diameter1800mm*410mm
    The parts connect with flour are made of stainless steel
    (Make sure the flour after mixing can be absorbed and mixed well)
    4 Composite and continuous dough pressing machine MT7-50 1 SET Dough width 350mm,power 5.5kw+5.5kw=11kw
    7 sets steel roller,frame is made of steel structure(frequency control)
    Diameter of roller:diameter 180*2,diameter 240*2,diameter180*2,diameter 162
    5 Single layer CZM50 1 SET 16 meter,water sealing
    Main motor power 1.5kw(frequency control),Pan 0.37kw*2,stainless steel
    6 Cutting,folding and conveying machine QFW80 1 SET Main power 1.5kw+0.75kw,cutting blade 50 times/min,adjustable
    7 Double layers drying machine PHG50 1 SET Main motor power 1.5kw*2(frequency control+fan 5.5kw*4,net width:2 meters,total length:30m), stainless steel net
    8 Horizontal conveyor HSS63 1 SET Main motor power 0.37kw
    9 Cooling conveyor SS63 1 SET One horizental:0.55kw,fan 0.37kw*4 ,length:6 meters.width:0.50 meter ,Belt is made of stainless steel
    10 Electricity control cabinet BPT-1 1 SET Main program adopts frequency control ,PLC program control
      Total     Total Power ~55kw

    * for reference
