Single Series

Instant Noodles Packaging Machine

  • Model:LG-400
  • Capacity:40-230 bags per minute
  • Dimension:4020*770*1450 mm
  • Power:2.4 kw
  • This instant noodles packaging machine is suitable for packing ice cream, biscuit, bread, moon cake, instant noodles and other kinds of regular objects. It is an ideal choice for hotels, restaurants, food processing factory, Unit Canteens and individual caterings.
    Pillow Type Packing Machine
    Characteristics:
    1. This automatic instant noodle packaging machine has positioned stop function, without sticking knife and film wasting.
    2. Digital screen, full CNC adjustment, convenient and flexible operation.
    3. Anti-cut material can be increased with the device, security will be guaranteed.
    4. The automatic instant noodle packaging machine self failure diagnosis, clear failure display.
    5. Speed of packing machine can be adjustable during packing process.
    6. Self-supply power. The supervision and module can be controlled and checked through PLC, stepless shift, timing, which can realize the synchronous running of production line, transverse feeding device and packager.
    7. All contact parts are made of stainless steel.

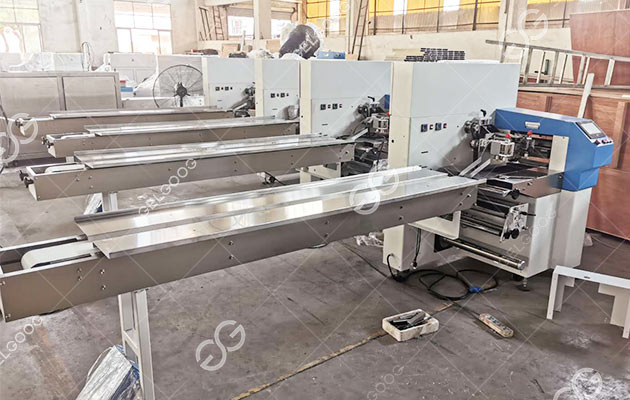

    Pillow Type Packing Machine Details
    Instant noodle packaging machine have been widely used in several fields throughout the world, such as food, pharmaceuticals, cosmetics, medical supplies, industrial foods, rubber goods, sundry goods, sporting goods, etc. This packing machine can also match with instant noodles production line.


    Our Service
    We sincerely supply comprehensive and best service to all of our customers. We offer services for the following.
    1. supply solutions for the buyers' special demands
    2. new design plant layout according to the actual situation
    3. onsite installation, commissioning and operational training
    4. provide technical support both at setup and maintain
    5. long - term supply of spare parts
    6. warranty service

    About Us
    JINGCHENG Machinery Company set up in 1988, is a professional manufacturer and exporter of different noodle making machines.Our company offers complete sets of fried instant noodle production line and non-fried instant noodle production line, dried noodle production line,fresh noodle production line, corn noodle production line and rice noodle production line. As a result of our high quality products and outstanding customer service, we have gained a global sales network . The products of our company are exported to many countries in Asia, Western Europe and South Africa.



    Contact us now! To get more information about noodle production!
  • Model JCG-400
    Film Width Max. 400mm
    Bag length 180-440mm
    Bag width 50-190mm
    Bag height Max.60mm
    Film Diameter Max. 320mm
    Packing speed 40~230 bags/min
    Power supply 110V/60 H Z,2.4 KW
    Machine size (L)4020*(W)770*(H)1450mm
    Machine weight 900Kg

    * for reference
