Non-fried Instant Noodles Plant

Automatic Chowmein Noodle Making Machine Line

  • Model:BFP-350
  • Capacity:3.5T/8H
  • Dimension:
  • Power:40 kw
  • Chowmein Noodle Making MachineIntroduction for Chowmein Noodle Production Line
    Automatic chowmein noodle making machine mainly including flour mixing system, rolling and slitting system,  steaming system, cutting and dividing system, noodle drying system and cooling system.

    Noodles Production Line Process Flow:
    Flour feeding---adding water---mixing---dough aging---pressing---cutting and folding wave---streaming---stretching and cutting---entering trays automatically---high pressure sterilization and steaming---drying---cooling---packing

    Related Products:
    Dried Noodles Production Line, 6 Roller Automatic Noodles Making Machine

    Our Service
    We sincerely supply comprehensive and best service to all of our customers. We offer services for the following.
    1. supply solutions for the buyers' special demands
    2. new design plant layout according to the actual situation
    3. onsite installation, commissioning and operational training
    4. provide technical support both at setup and maintain
    5. long - term supply of spare parts
    6. warranty service

    About Us
    JINGCHENG Machinery Company set up in 1988, is a professional manufacturer and exporter of different noodle making machines.Our company offers complete sets of fried instant noodle production line and non-fried instant noodle production line, dried noodle production line,fresh noodle production line, corn noodle production line and rice noodle production line. As a result of our high quality products and outstanding customer service, we have gained a global sales network . The products of our company are exported to many countries in Asia, Western Europe and South Africa.



    Contact us now! To get more information about noodle production!
  • Name Remarks
    Brine Mixing Machine

    Cubage 1000L
    Power 1.5kw
    Pump 0.75kw
    Stainless Steel Made
    Brine Measurement Device Cubage 100L
    Stainless Steel Made                      ,
    Pump 0.75kw
    Automatic water system
    Double-Spindle
    and Double-Speed
    Dough Mixer
    Power 9-11kw
    Capacity: 200kg/pot
    Stainless Steel Made
    Softening Machine Power 4kw
    Dimension: 1600*700*550 mm
    Main parts stainless steel
    Single rolling machine Roller width 350mm
    Power 15kw.
    7 sets of rollers
    Electrically Controlled Cabinet Frequency Conversion Actiyator
    Exclude the power source and wires
    blade High-quality carbon steel
    high-frequency quenching
    For noodles and shredded
    lever machine High-quality carbon steel
    power 0.37kw
    Pick lever machine Stainless steel

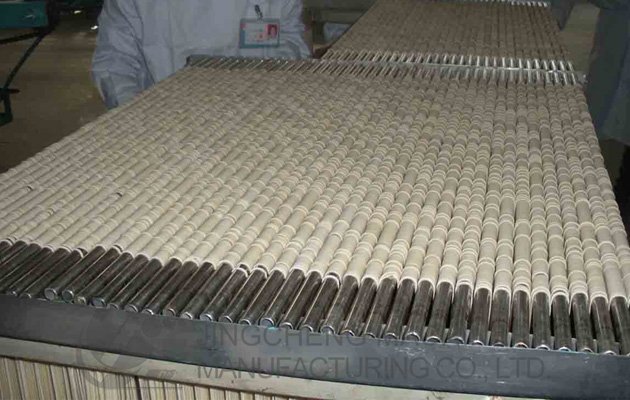

    Noodle bar Stainless steel
    And lever machines to pick lever machines
    Stroller Stainless steel, each upper and lower two carts
    steam boiler 4 meters long, adjustable pressure
    Conveyor Stainless steel
    Drying Machine Main Power 1.5kw. 1 layers.
    Automatic temperature control
    Conveyor Main power: 0.37kw
    Mechanical stepless regulation
    Worn-out Components Chain, gear, belt and other accessories

    * for reference
